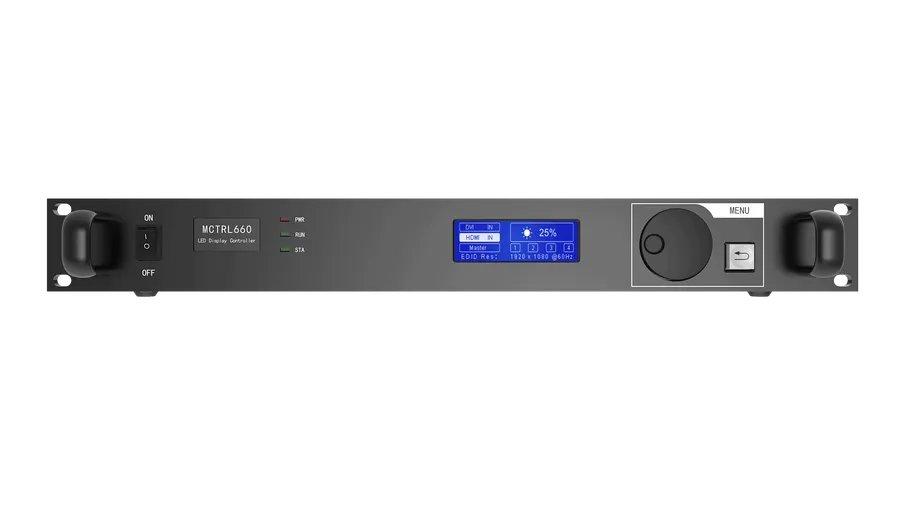

NovaStar MCTRL660 Video Wall Controller
Model: MCTRL660
Brand: NovaStar
Video Wall Controller
LED display controller with fast screen configuration, no computer required.
Applications:
- Convention Hall
- Commercial Space
Official source: Product page on the manufacturer's website
Product Overview
The NovaStar MCTRL660 is an LED display controller that allows screen configuration without a computer in under 30 seconds, making it well suited to commercial and sports video walls.
Key features:
- HDMI and DVI input/output with 10/12-bit colour depth
- Multiple units can be cascaded for large screens
- For display centres, retail and sports facilities
Technical Specifications
| Inputs | 1 × DVI, 1 × HDMI, 1 × audio |
|---|---|
| Outputs | 4 Gigabit Ethernet ports, up to 650,000 pixels each |
| Maximum input resolution | 1920×1200 @ 60 Hz (customisable up to 3840 pixels wide/high) |
| Cascading | Up to 20 units |
| Application | Fixed installations and temporary events |
