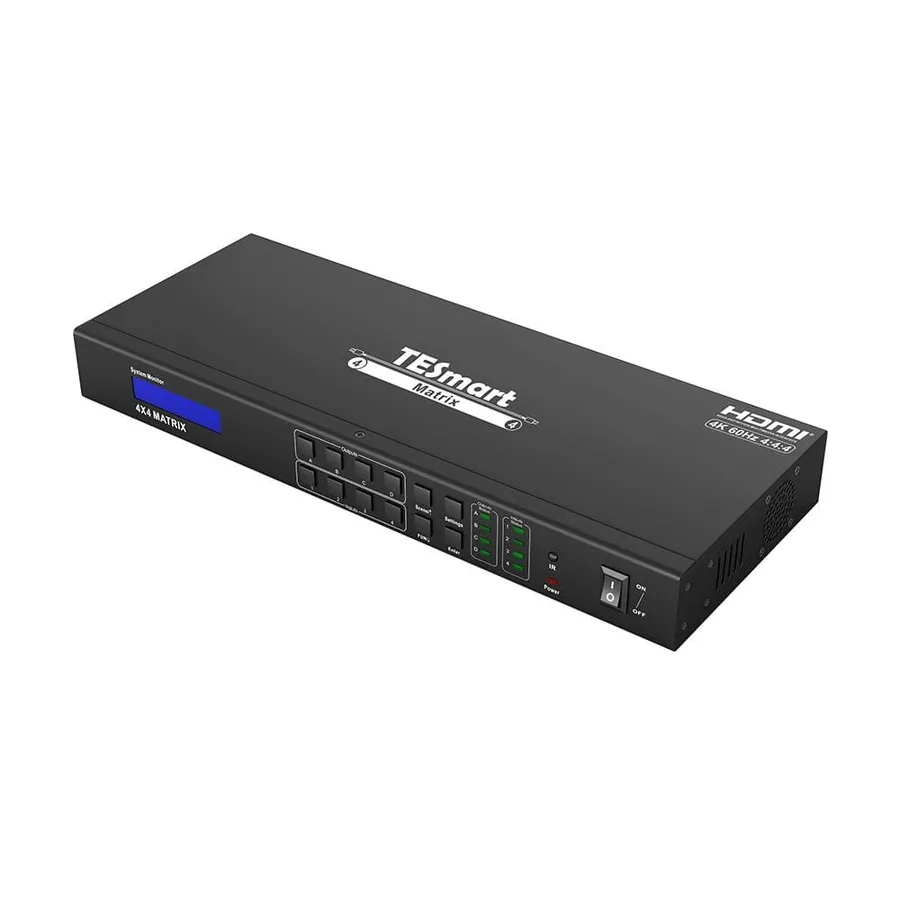

TESmart HMA404-E23 4×4 HDMI Matrix
Model: HMA404-E23
Brand: TESmart
HDMI Matrix Switch · Video Matrix & Switch
4×4 4K HDMI matrix switch with audio output and RS232/LAN control; any of 4 sources to any of 4 displays.
Applications:
- Conference Room
- Convention Hall
- Fixed Installation
Official source: Product page on the manufacturer's website
Product Overview
Key features:
- Routes any of 4 HDMI sources to any of 4 displays
- Resolution up to 3840×2160@60Hz 4:4:4, HDMI 2.0 and HDCP 2.2 compliant
- L/R audio output and IR extension
- Smart EDID management for compatibility with most displays
- Control by IR remote, front-panel buttons, RS232 serial commands or IP commands
Technical Specifications
| Matrix | 4 × 4 HDMI |
|---|---|
| Resolution | 3840 × 2160 @ 60Hz 4:4:4 |
| Standard | HDMI 2.0, HDCP 2.2 |
| Control | IR, front panel, RS232, LAN |
